NanoCool, Refrigerated 2-8°C
2-8°C Specimen Shipping System
- Actively maintains 2°C – 8°C temperatures
- No gel packs required
- Temperature tested to ISTA 7D standards
- Arrives ready to activate and ship
- Can be conveniently stored at room temperature
Therapak’s 2-8°C Specimen Shipping System features self-cooling technology built into the lid. With no refrigeration required, activate the cooling process with the simple push of a button and your contents will remain in the 2° to 8°C range from 48 to 92 hours depending on system selection with no further conditioning or temperature control necessary.
Extended Duration Systems offer longer temperature maintenance without increasing the dimensional shipping weight of the system.
| Part No. | Description | Duration | ID | OD | Packaging |
|---|---|---|---|---|---|
| 56849 | 2-8°C Shipping System, Small | 48 Hours | 8.5 x 4.7 x 1.6″ | 12.1 x 7.9 x 5.1″ | 4/case |
| 56850 | 2-8°C Shipping System, Large | 72 Hours | 8.5 x 4.7 x 4″ | 12.1 x 7.9 x 7.4″ | 2/case |
| 562802 | 2-8°C Shipping System, Small, Extended Duration | 72 Hours | 8.5 x 4.7 x 1.6″ | 12.1 x 7.9 x 5.1″ | Each |
| 562803 | 2-8°C Shipping System, Large, Extended Duration | 92 Hours | 8.5 x 4.7 x 4″ | 12.1 x 7.9 x 7.4″ | Each |
| 562804 | 2-8°C Shipping System, Extra Large, Extended Duration | 87 Hours | 9.5 x 8.7 x 6.1″ | 13.9 x 12 x 10.3″ | Each |

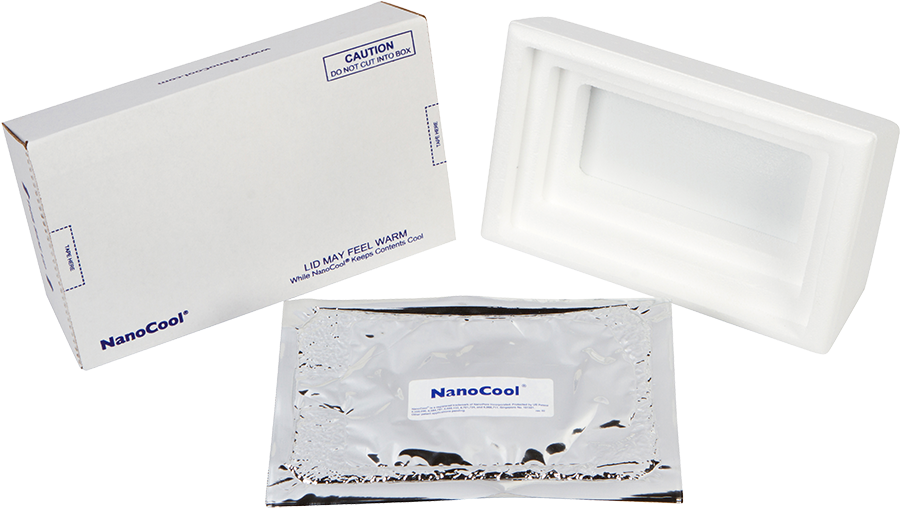

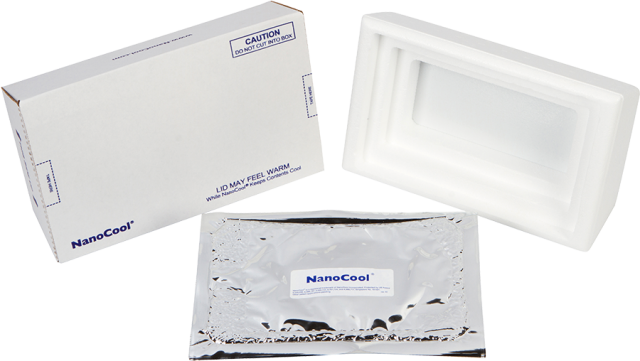

2-8°C Shuttle Specimen Shipping System
- Compact and lightweight
- Reduces transportation costs
- Qualified 2-8°C for 42 hours
- Fits inside overnight EHS and UN3373 designated envelopes
- Simple one-touch activation
- Uses evaporative cooling technology
- No preconditioning hassles
The 2-8°C Shuttle system is a refrigerated shipping system that utilizes evaporative cooling technology for 2-8°C overnight shipments of biological specimens and other health care products.
The evaporative cooling technology is seven times more powerful than gel packs or ice. The active cooling process adjusts to variations in ambient temperature in a way conventional cooling systems cannot.
The compact size (305 x 200 x 92mm) of the Shuttle and light weight (2.4 lbs) results in reduced transportation costs for overnight shipments.
The Shuttle has been qualified up to 42 hours and can be shipped inside FedEx or UPS Exempt Human Specimen (EHS) and UN3373 designated overnight envelopes. Shipping of UN3373 Biological Substance, Category B specimens inside the Shuttle requires that the package and payload is tested and certified in compliance with IATA Packing Instruction 650.
| Part No. | Description | Duration | ID | OD | Packaging |
|---|---|---|---|---|---|
| 563376 | 2-8°C Shuttle System | 42 Hours | 7.48 x 3.54 x 1.18″ | 12 x 7.9 x 3.6″ | 8/case |
